The SHS-320 E25 is a high-capacity electric scissor lift offering a maximum working height of 32m and a significant horizontal outreach of 29.7m. Designed for versatility, it features a robust 1000kg platform capacity, proportional controls, and certified operation in temperatures down to -15°C. Standard safety systems and optional 4WD/4WS enhance its suitability for demanding indoor and outdoor industrial applications.
Controlbox with quick disconnect
Hourmeter
230V supply on platform
Driving at full height
Driving, proportional
Lifting, proportional
Differential lock
Scissors skirt
Drive alarm
Rotating beacon
Emergency descent
Indoors
Outdoors
Certified min. temperature -15ºC

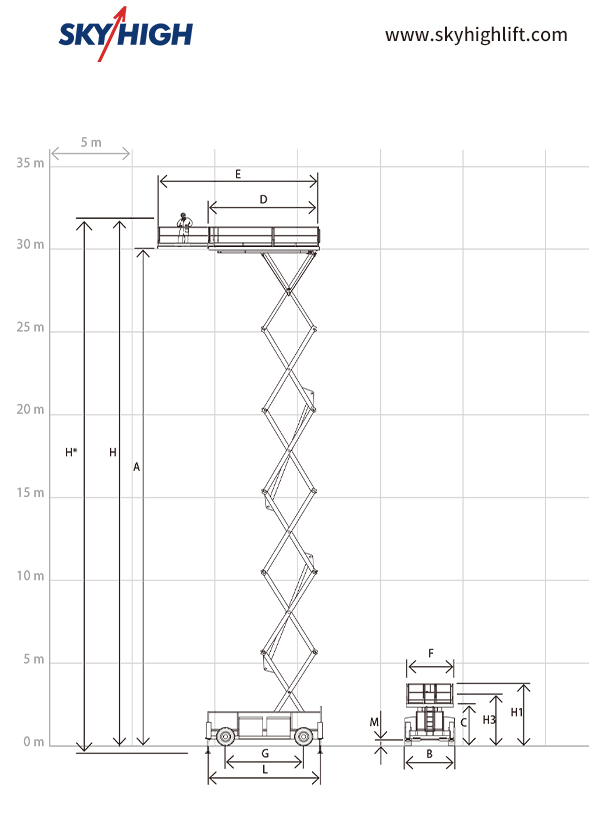

| SHS-320E25 | |
| Max. working height : | 31.70 m |
| Max. working height (on outriggers) : | 32.00 m |
| Max. platform height : | 29.70 m |
| Min. platform height : | 2.85 m |
| Platform dimensions (retracted) : | 6.15×2.30 m |
| Platform dimensions (extended) : | 8.25×2.30 m |
| Transport height : | 4.15 m |
| Transport height (handrail folded down) : | 3.20 m |
| Transport dimensions : | 6.75×2.50 m |
| Wheel base : | 4.90 m |
| Ground clearance : | 240 mm |
| Turning radius outside : | 6.50 m |
| Max. capacity main platform : | 1000 kg (4 pers.+680 kg) |
| Max. capacity roll-out deck : | 1000 kg (4 pers.+680 kg) |
| Lift-/lower time (max. load) : | 165/122 sec. |
| Drivig speed (high) : | 2.0 km/h |
| Drivig speed (slow) : | 0.5 km/h |
| Tyres : | 15×22.5 |
| Gradeability : | 30% |
| Batteries (traction acid) | 900 Ah/80 V |
| Gross weight : | 24300 kg |
SHS-320E25
