CRAWLER 220A

PRODUCT DESCRIPTION

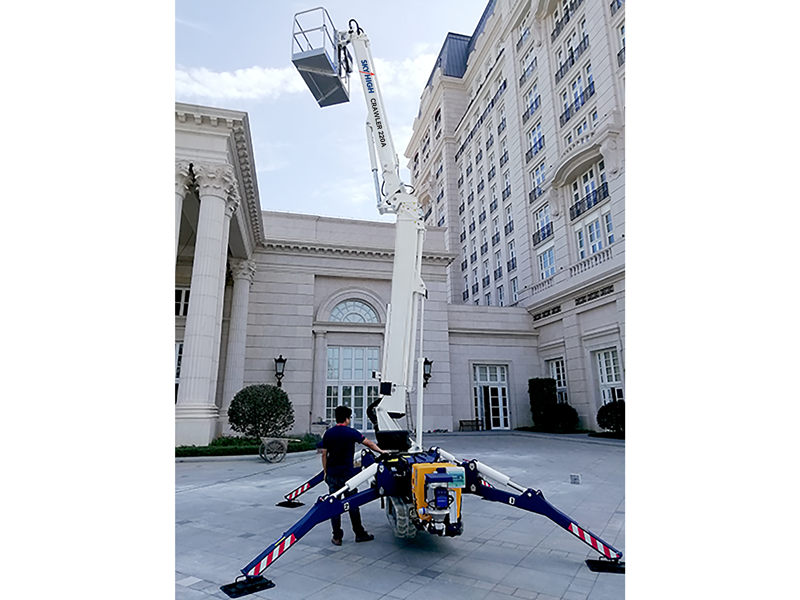

The CRAWLER 220A spider lift is a classic ascending lift. It has the CRAWLER series' unique double telescopic boom structure, which can be extended down to 2.5 meters. The overall structure of the machine is incredibly tiny, with a width of about 8.35 meters. With a length of about 4.3 meters and a compact turning radius, it is ideal for both indoor and outdoor use in business centers.



STANDARD FEATURES

• Operating height of 22 meters

• Using advanced Danfoss electro-hydraulic control technology

• Configure wireless remote control system

• Outriggers can be set in three directions

• Hydraulic stop locks for each hydraulic cylinder

• Diesel engine with HATZ

• Double telescopic boom form

DATASHEET

Working height	22 m
Lifting height	20 m
Lateral outreach	9 m
Up and over clearance	14 m
Basket size	1,4m x 0,7m x 1,1m
Total length	4.33 m
Total width	0.8-1.15 m
Total height	1.97 m
Basket of rotation	±90°
Range of rotation	720°
Negative work	-3 m
Ground clearance	0.16 m
Basket load	230 KG
Travel speed	1.5 KM/H
Gradeability	23 %
Turning radius	3.0 m
Overall weight	2800kg
Jacking dimension	4.82 m×3.60 m
Power	Engine+Electric motor
Platform controls	Electronic+Radio

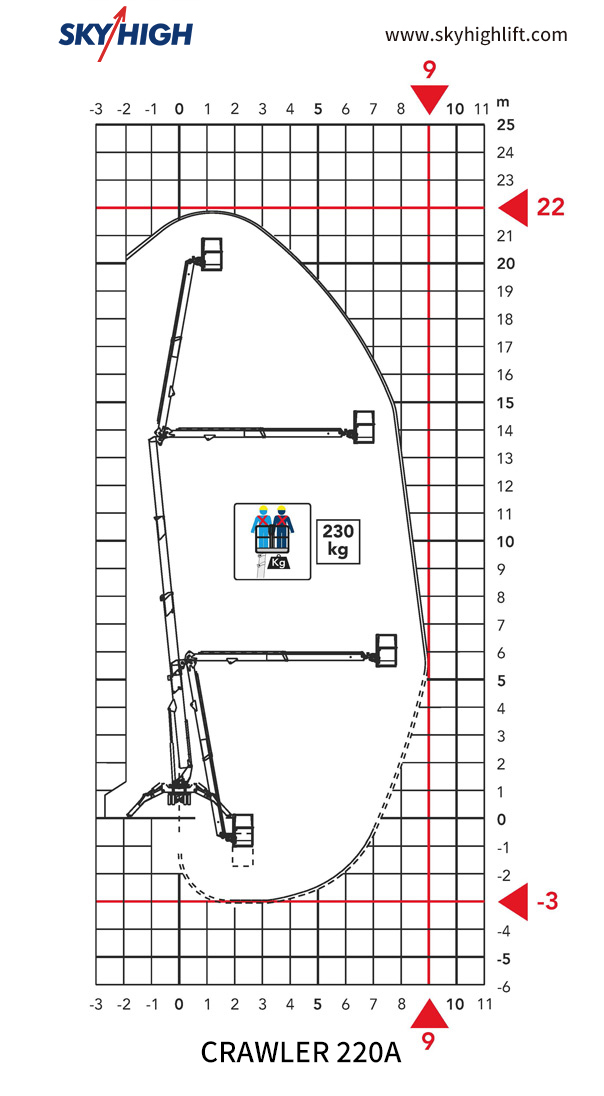

WORK DIAGRAM

​​​​​​
