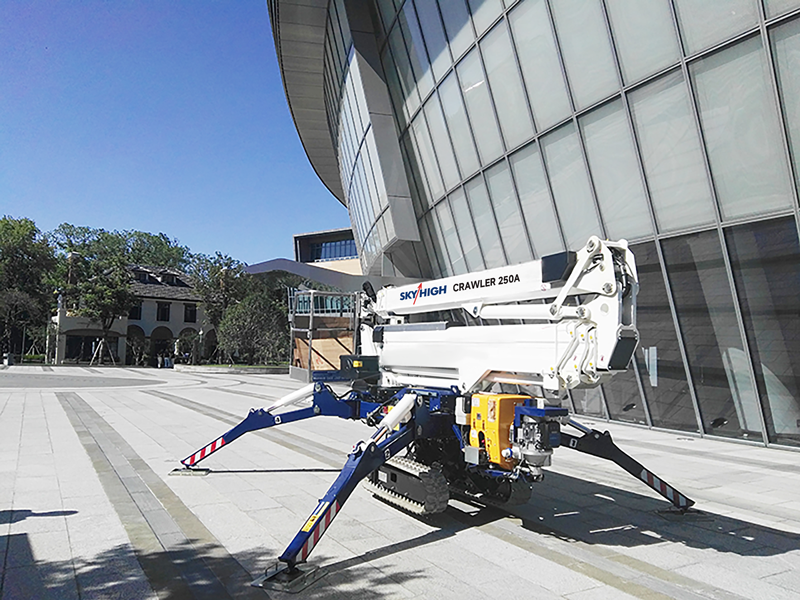

CRAWLER 250A spider lift is well-known for its compact size, elegant design, and durability. All pipelines are built within the boom, with the Can-bus control system and dual safety sensor protection. Following the system, the entire machine features a double telescopic curved arm design that provides unrivaled advantages in terms of horizontal extension and cross-height. It is an ideal spider car for inside confined spaces. CRAWLER 250A is currently used in commercial hubs such as stadiums, high-rise office buildings, airports, train stations, and other locations.

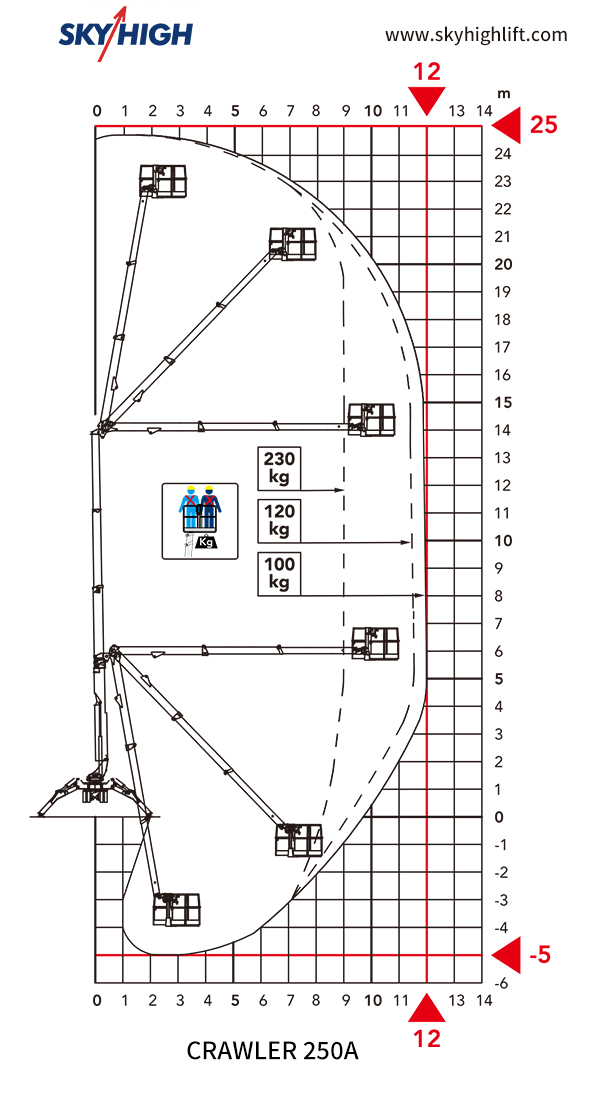

Working height up to 25 m
Small and flexible, powerful
Control system using Can-Bus bus
Minimum storage length is 4.1 m
Using wireless remote control system
Up to 12 m horizontally
Using high-power gasoline and 220V AC motor as power source
Machine width can be reduced to 0.8 m and can pass through narrow doorways
Proportional hydraulic control
With manual emergency lowering system
Easy to repair and maintain
|
Working height |
25 m |
|
Lifting height |
23 m |
|
Lateral outreach |
12 m |
|
Up and over clearance |
14 m |
|
Basket size |
1,4m x 0,7m x 1,1m |
|
Total length |
4.3 m |
|
Total width |
0.85 m |
|
Total height |
1.97 m |
|
Basket of rotation |
±90° |
|
Range of rotation |
720° |
|
Negative work |
-5 m |
|
Ground clearance |
0.16 m |
|
Basket load |
230 KG |
|
Travel speed |
1.5 KM/H |
|
Gradeability |
30 % |
|
Turning radius |
3 m |
|
Overall weight |
2950 kg |
|
Jacking dimension |
4.8 m×3.6 m |
|
Power |
Engine+Electric motor |
|
Platform controls |
Electronic+Radio |
CRAWLER 250A
