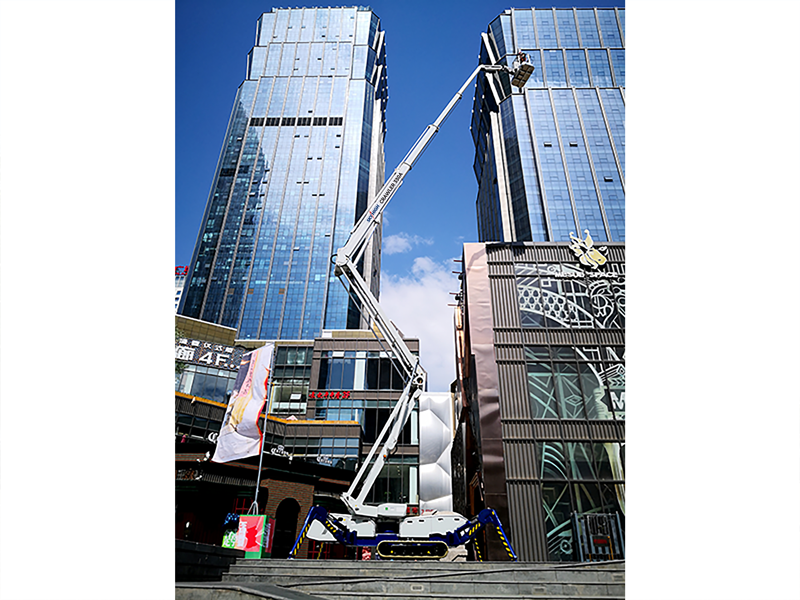

The CRAWLER 330A articulating-boom spider's ability to extend horizontally to a maximum distance of 19 meters is its primary characteristic.
The CRAWLER 330A articulating-boom spider machine can be used in docks, ports, substations, and building sites where extended horizontal operations are needed. With its 180AH battery power system and powerful diesel engine, it can function both indoors and outdoors with flexibility. The device also features retractable crawlers to allow for easy access in confined areas.
| Automatic stability & outreach control |
| Computer controlled (can-bus) |
| Proportional control of all functions |
| Self-propelled 2 speed selection |
| Battery powered with charger 180 Ah |
| Jib-arm 110° |
| 375° turret rotation, with integrated stop |
| +/- 90° basket rotation |
| Ability to self-load onto trucks or trailers |
| Electronic checking of the power |
| system (PLC) |
| Manual pump system for emergency lowering |
| Variable width, hydraulic (1,1m -1,5m) |
| Minimum width only 1,10 m |
| Space for tools etc. in basket |
| Storage room in chassis with lock |
| Diesel engine, Kubota 3 cyl. 21,7 kw |
| Wireless remote control of all functions |
| 110v/220V AC power supply in the basket |
| Non marking crawlers |
| Individual setting of each outrigger |
Options: |
| IDRC – Interactive Directional Remote Control |
| Hazard lights kit (strobe lights. working lamp) |
| Protection kit (enhanced shileds/cover) |
| 400V AC direct powered electro motor |
| Autosetting / Leveling |
| Special outrigger footplates |
| Special colour |
| Service tool |
| Anti entrapment system |
| Cover |
|
Working height |
33 m |
|
Lifting height |
31 m |
|
Lateral outreach |
Max 19 m |
|
Up and over clearance |
9.5 m |
|
Basket size |
1.4 x 0,8 x 1,1 m |
|
Total length |
7.4 m |
|
Total width |
1.1-1.5 m |
|
Total height |
1.99 m |
|
Basket of rotation |
±90° |
|
Range of rotation |
375° |
|
Jib arm |
110° |
|
Ground clearance |
1400 mm |
|
Basket load |
250 KG |
|
Travel speed |
1.5 KM/H |
|
Gradeability |
37 % |
|
Double linkarm |
200° |
|
Overall weight |
6200 kg |
|
Jacking dimension |
7.2 m×5.2 m |
|
Power |
Engine+AC motor |
|
Platform controls |
Electronic+Radio |
CRAWLER 330A
