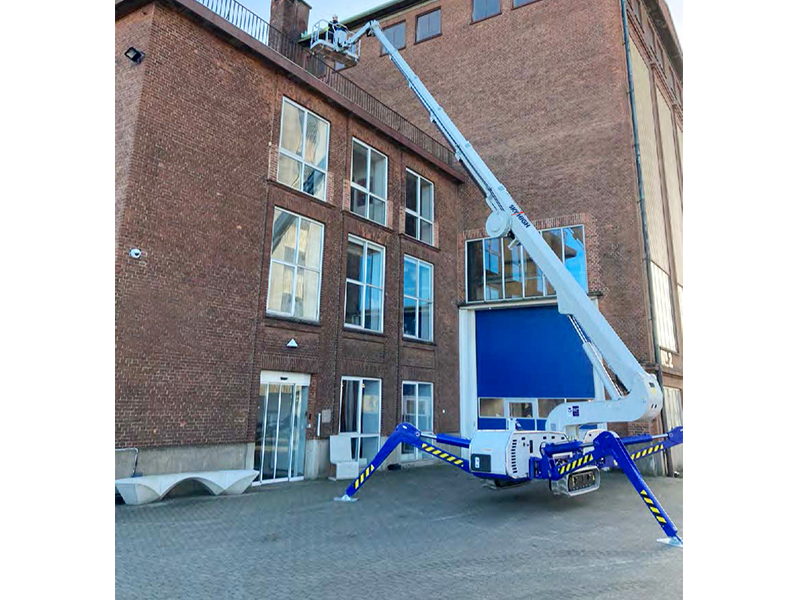

The CRAWLER 380T aerial spider vehicle is a unique design with market-leading features. The CRAWLER 380T has a working height of 38 metres and a height-adjustable crawler lift.The CRAWLER 380T is the latest aerial spider truck, with a maximum load capacity of 450 kg and a working height of 38 metres, due to a sophisticated electronic and safety control system that ensures a maximum level extension of 16.5 meters. The whole boom adopts the structure of telescopic boom + small boom, which meets most of the requirements of site use; as many customers need not only to use the spider truck as an aerial work platform, but also as an auxiliary tool for aerial work installation and maintenance, so the CRAWLER 380T has the option of installing an auxiliary tray for glass to increase the functionality of the spider truck.
| Automatic stability & outreach control |
| Computer controlled (can-bus) |
| Proportional control of all functions |
| Self-propelled 2 speed selection |
| Battery powered with charger (180 Ah) |
| Single jib |
| 380 ° turret rotation, with integrated stop |
| Individual setting of each outrigger |
| Electronic checking of the power system (PLC) |
| Manual pump system for emergency lowering |
| Ability to self-load onto trucks or trailers |
| Variable crawler system |
| Adjustable track width |
| Minimum width only 1,39 m |
| Diesel engine, Kubota 3 cyl. 19,5 kw |
| Space for tools etc. in basket |
| Storage room in chassis with lock |
| Wireless remote control of all functions |
Options: |
| +/- 90 ° basket rotation |
| 220V AC power supply in the basket |
| Air/water supply in the basket |
| Sensor system on basket |
| Non marking crawlers |
| Slope alarm |
| 400V AC direct powered electro motor |
| Extra batteries |
| Autosetting/levelling |
| Special outrigger footplates |
| Basket in various sizes |
| Anemometer wind warming system |
| Special colour |
| Height control switch |
| Service tool |
| Anti entrapment system |
| Cover |
|

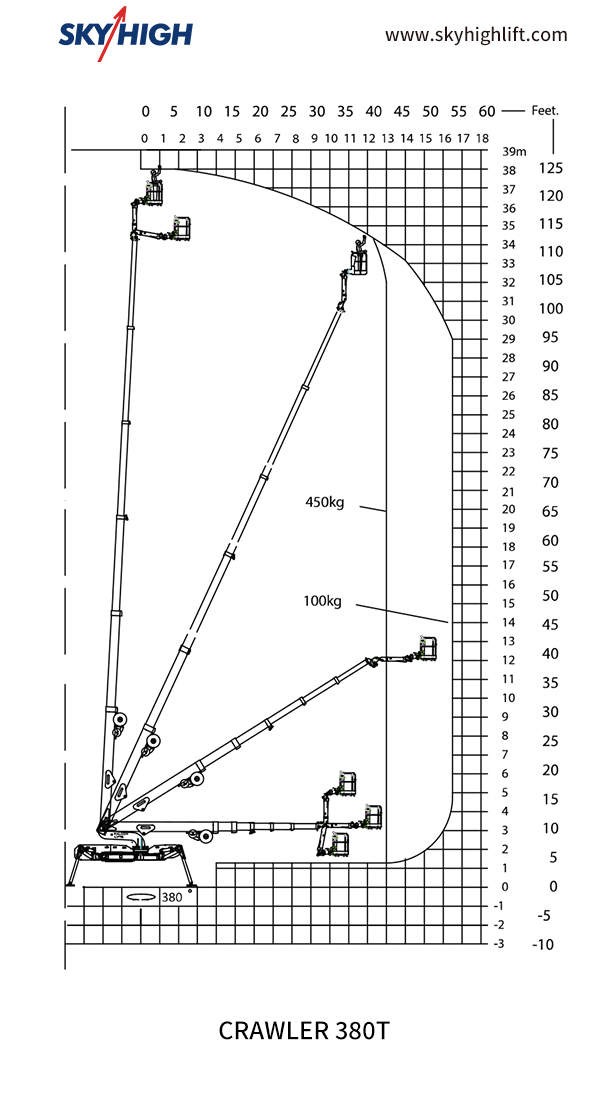

Working height |
38 m |
|
Lifting height |
36 m |
|
Lateral outreach |
13.5-16.5 m |
|
Up and over clearance |
35 m |
|
Basket size |
2.0 x 0,8 x 1,1 m |
|
Total length |
8.45 m |
|
Total width |
1.43-1.72 m |
|
Total height |
1.95-2.23 m |
|
Basket of rotation |
±90° |
|
Range of rotation |
380° |
|
Jib arm |
200° |
|
Ground clearance |
2000 mm |
|
Basket load |
450 KG |
|
Travel speed |
1-3 KM/H |
|
Gradeability |
47 % |
|
Double linkarm |
200° |
|
Overall weight |
8250 kg |
|
Jacking dimension |
6.7 m×6.5 m/ 5.4 m × 7.0 m |
|
Power |
Engine+AC motor |
|
Platform controls |
Electronic+Radio |
CRAWLER 380T
