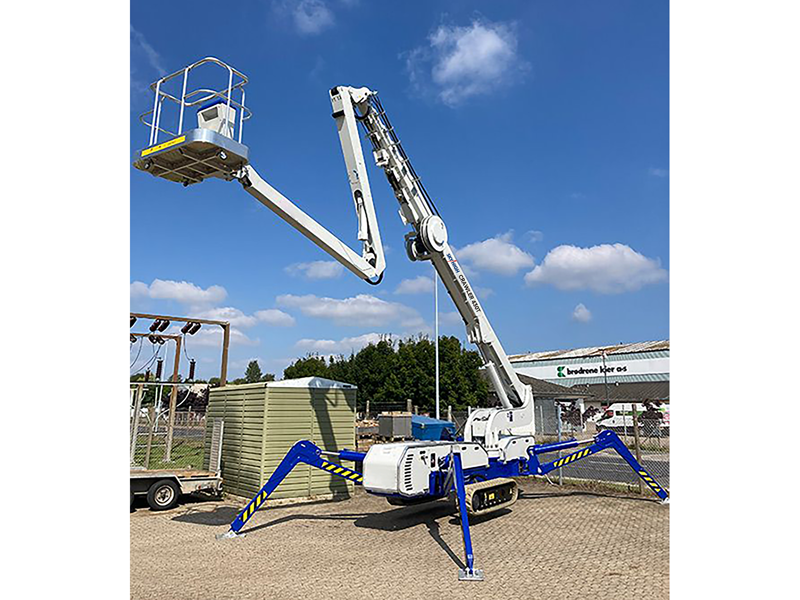

The CRAWLER 430T spider lift is a compact, yet remarkably powerful and versatile machine, featuring dual slender arms. Remarkably agile, it can easily manoeuvre through narrow passageways, fitting through doorways as small as 1.39 metres wide and 1.95 metres high. The CRAWLER 430T has undergone significant optimisation, incorporating innovative features such as twin chain booms, automatic positioning of the outriggers, and the ability to steer both the outriggers and the chassis directly from the basket. These advancements make this spider lift truly unique, meeting modern demands for speed, usability, and safety. The CRAWLER 430T is renowned for its exceptional manoeuvrability and intuitive user experience.
Automatic stabilisation and precise extension control
Advanced CAN bus control system
Fully proportional control for seamless operation
Self-switching between two speed modes
Battery operated with a 180 Ah charger
Sturdy 7.6-metre double chain arm design
380° turntable rotation with built-in stop mechanisms
Independent setting for each outrigger
Electronic monitoring of the electrical system via PLC
Emergency hand pump system for safe lowering
Capable of self-loading onto trucks or trailers
Durable double track system
Adjustable track width for versatility
Compact design with a minimum width of just 1.39 metres
Convenient tool storage space within the basket
Secure storage compartment integrated into the locked chassis
Powerful diesel engine for robust performance
Wireless remote for effortless control of all functions
|

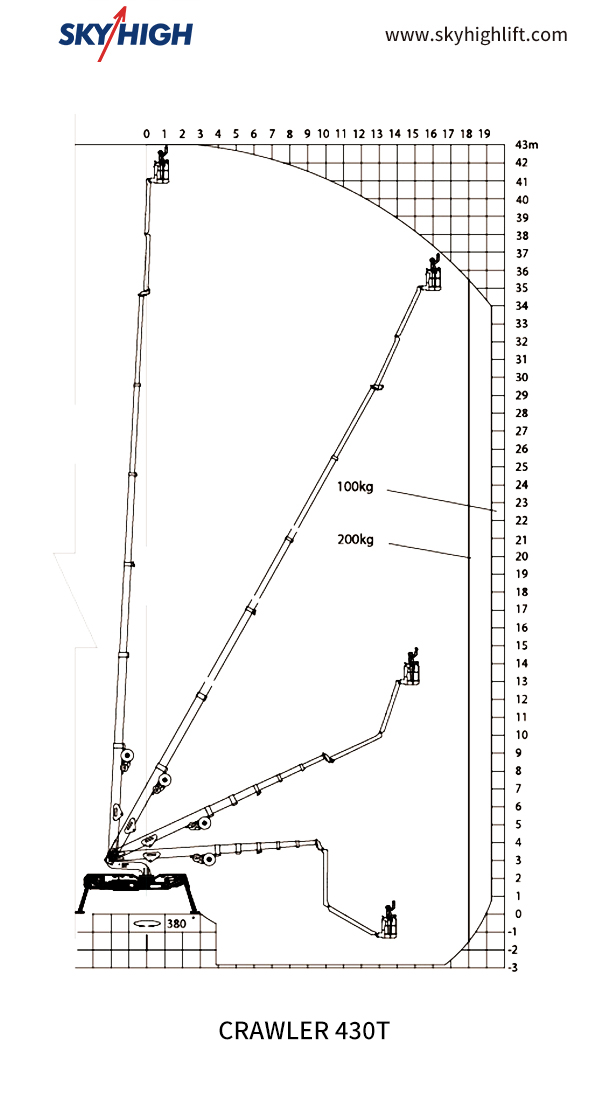

Working height |
43 m |
|
Lifting height |
41 m |
|
Lateral outreach |
18.5 m |
|
Up and over clearance |
35 m |
|
Basket size |
0.8m x1.4m |
|
Total length |
8.28 m |
|
Total width |
1.39 m |
|
Total height |
1.95 m |
|
Basket of rotation |
±90° |
|
Range of rotation |
380° |
|
Adjustable crawler track |
1.78 m |
|
Ground clearance |
0.2 m |
|
Basket load |
200 KG |
|
Travel speed |
1-3 KM/H |
|
Gradeability |
25°/47 % |
|
Turning radius-outside |
4.9 m |
|
Overall weight |
8340kg |
|
Jacking dimension |
6.7 m×6.5 m / 5.4 m × 7.0 m |
|
Power |
Diesel engine+Electric motor |
|
Wind speed |
12.5m/s |
CRAWLER 430T
