The tallest compact platform in the world is the CRAWLER 520T! Users of the CRAWLER lift truck series value the lift truck's small design, flexibility, low weight, maximum range, and safety in their daily job. With characteristics that top the industry, the CRALWLER 520T is an original Spider elevator. The CRAWLER 520T boasts a 4-track design and an operating height of 52 meters.
Facility management
Atrium access
Narrow access
Best quality & safety
Double jib system
Easy transport & propelling
Low weight & ground pressure
Need for flexible outrigger
Limited setup space
Power – Bi-energy Hybrid
|
Working height |
52 m |
|
Lifting height |
50 m |
|
Lateral outreach |
17 m |
|
Up and over clearance |
44 m |
|
Basket size |
1.4 x 0,8 x 1,1 m |
|
Total length |
9.3 m |
|
Total width |
1.25 m |
|
Total height |
2.10 m |
|
Basket of rotation |
±90° |
|
Range of rotation |
375° |
|
Negative work |
-4 m |
|
Ground clearance |
1400 mm |
|
Basket load |
200 KG |
|
Travel speed |
1.5 KM/H |
|
Gradeability |
37 % |
|
Double linkarm |
200° |
|
Overall weight |
13500 kg |
|
Jacking dimension |
7.2 m×5.2 m |
|
Power |
Engine+AC motor |
|
Linkarm （2x3） |
6m |

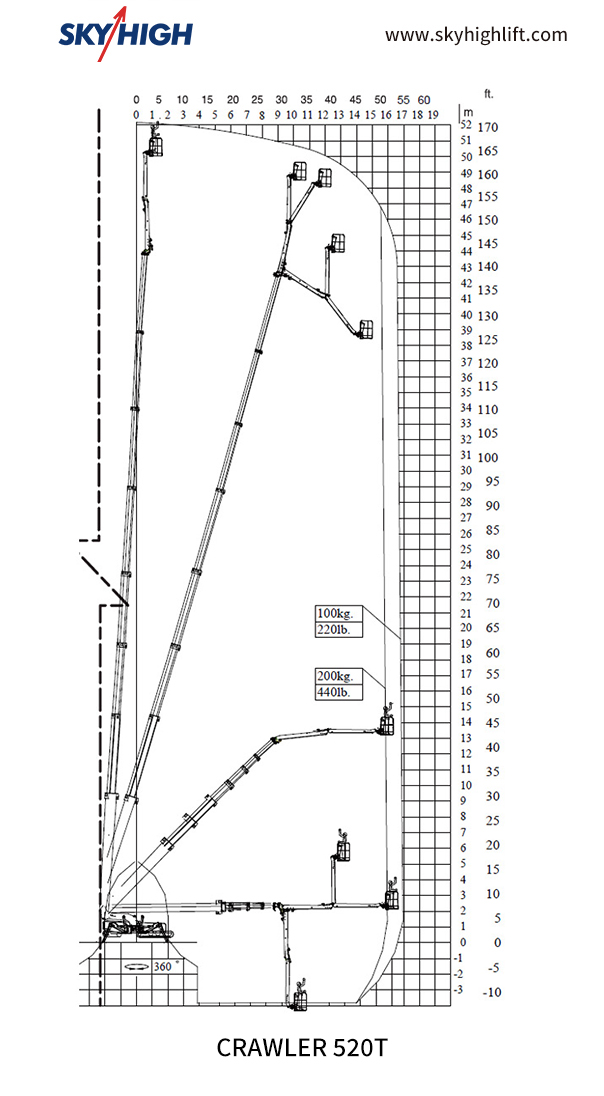

CRAWLER 520T
